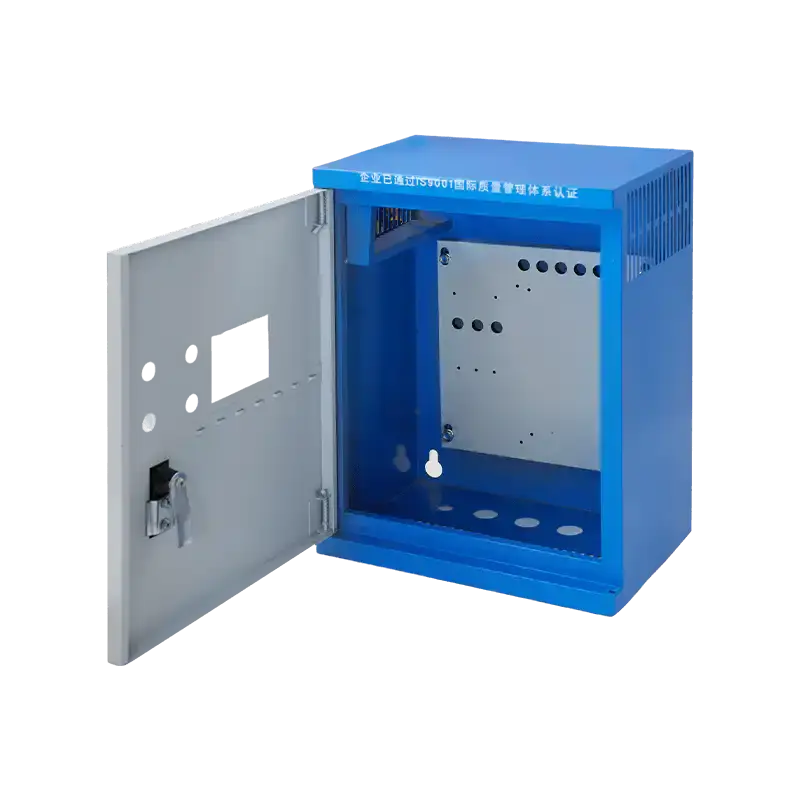

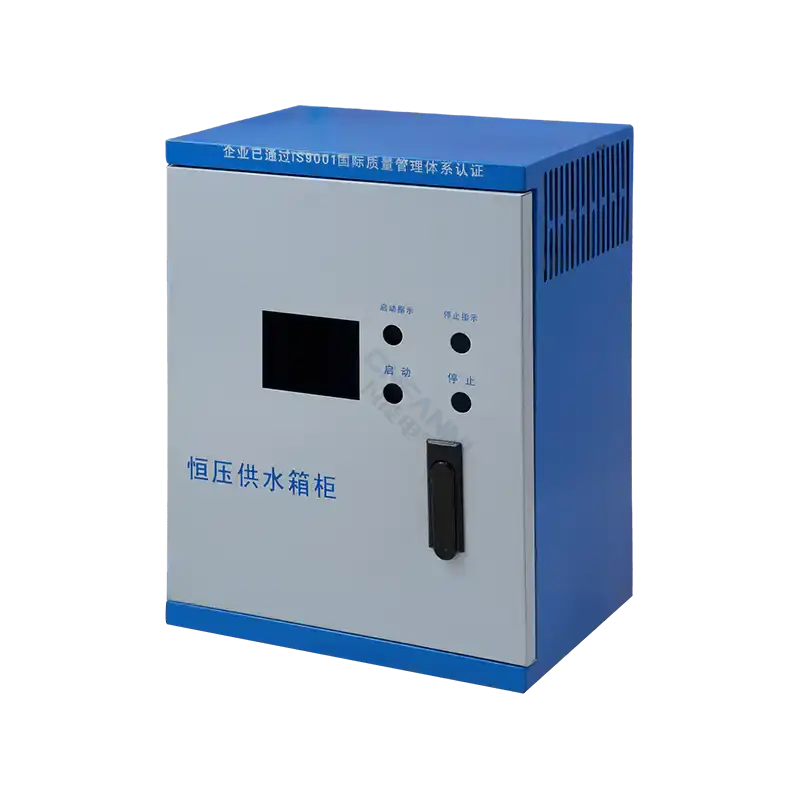

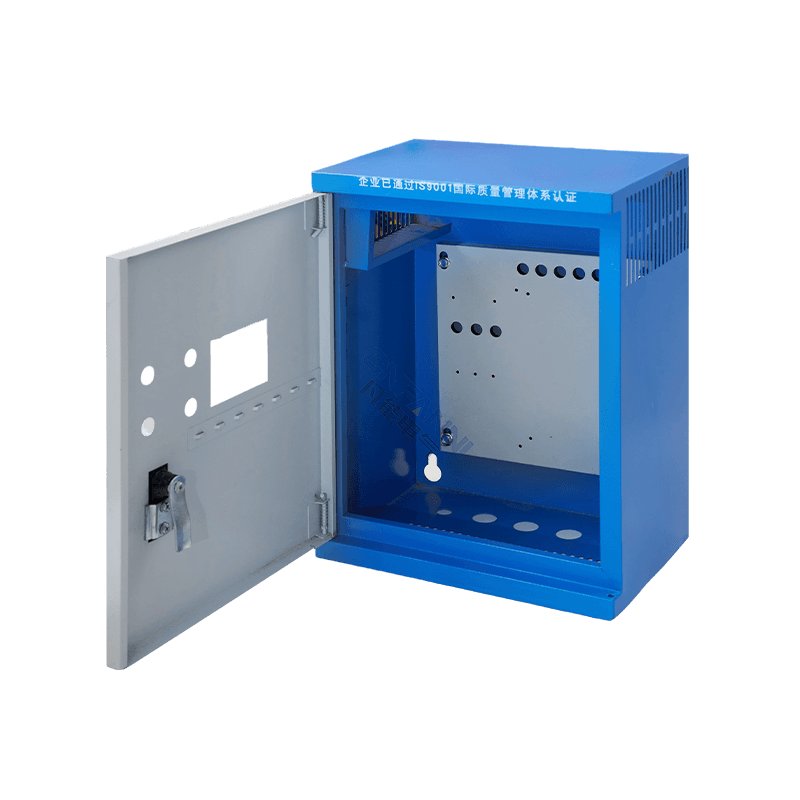

Constant Pressure Water Supply System Enclosure

Industrial VFD Enclosure for Constant Pressure Water Supply Systems

This specialized control cabinet is engineered to house variable frequency drives (VFD) and PLC automation systems for constant pressure water supply management. Designed for high-performance pump control, it ensures a stable and protected environment for sensitive electronics in pump rooms and industrial utility environments.

Key Advantages

• Thermal Management Optimization | Integrated Ventilation Specifically designed for high-heat components like VFDs, featuring precision-cut side louvered vents and pre-drilled fan mounting points to ensure continuous airflow and prevent thermal shutdown during peak operation.
• Moisture & Corrosion Resistance | IP54 Rated Constructed from high-grade cold-rolled steel with a heavy-duty electrostatic powder coating. The CNC-poured PU gaskets provide a reliable seal against high humidity and water splashes common in water treatment and pump facilities.
• Reinforced Structural Support | 1.5mm - 2.0mm Steel The enclosure is fabricated with a reinforced frame to support the weight of industrial-grade heavy-duty busbars, circuit breakers, and frequency converters, ensuring long-term structural integrity.
• Engineering-Friendly Layout | Rapid Component Mounting Equipped with a galvanized, depth-adjustable internal mounting plate (2.0mm - 2.5mm thickness). The spacious internal design allows for clean cable management and easy maintenance of PLC and sensor modules.

Applications

• High-Rise Building Water Supply Systems
• Industrial Water Treatment and Filtration Plants
• Agricultural Irrigation and Smart Farming Control
• Firefighting Pump and HVAC Pressure Control
