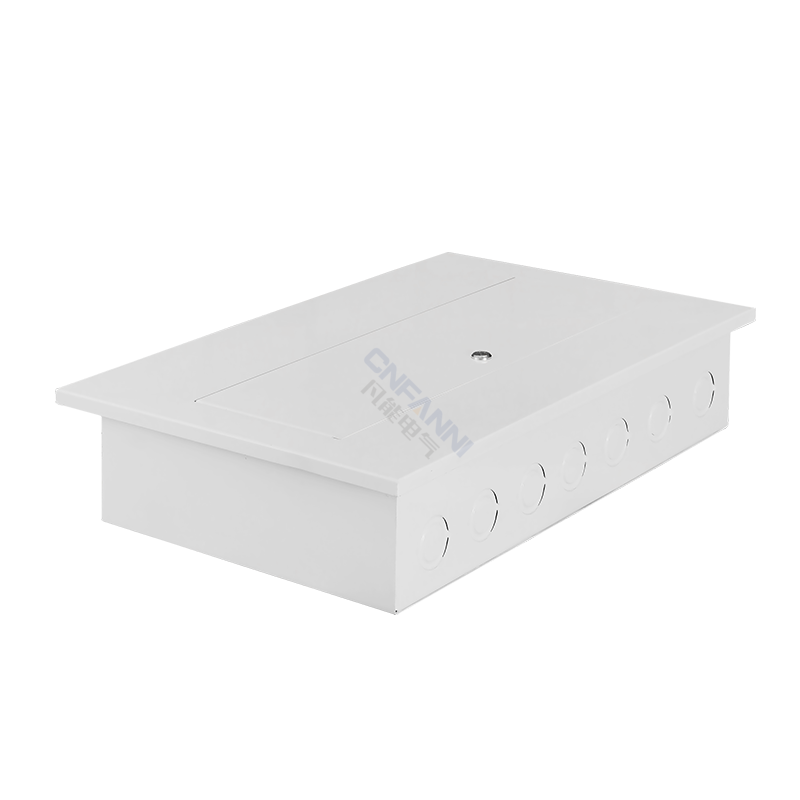

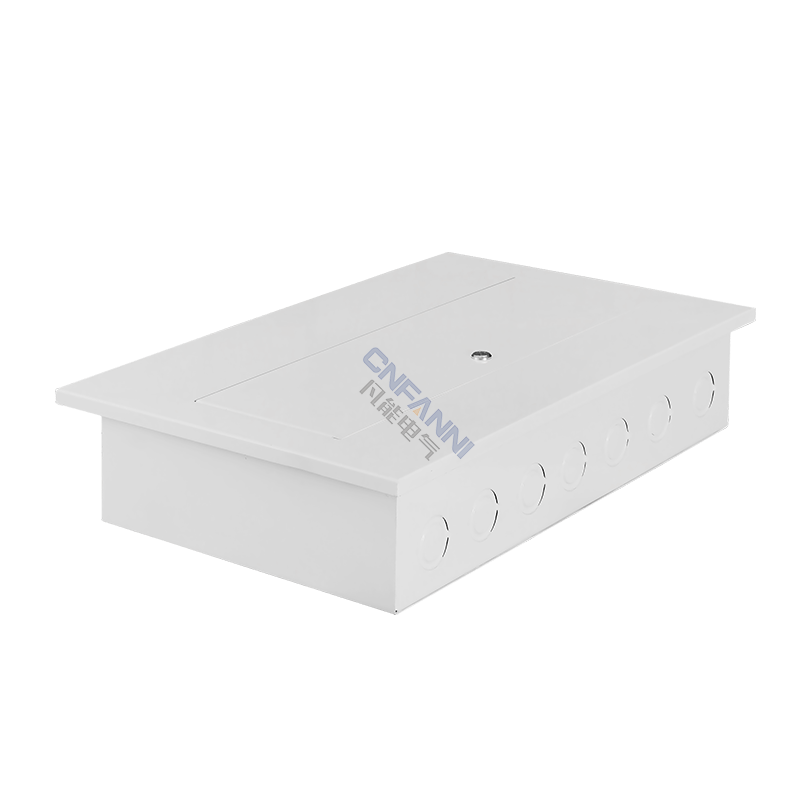

PZ30 Waterproof and Leakage-Proof Metal Lighting Distribution Box Panel

Model:

PZ30 Waterproof and Leakage-Proof Metal Lighting Distribution Box Panel

The PZ30 Lighting Control Distribution Box is a high-quality indoor electrical enclosure designed for residential and commercial circuit protection. It provides a safe and organized modular system for managing lighting and power circuits with ease of installation.

Key Advantages

Modular Design | Easy Component Integration Standardized internal rail system allows for quick snap-on installation of circuit breakers and modular electrical devices.
Slim Profile | Space-Saving Installation The flush-mount design ensures the box sits level with the wall surface, providing a clean and unobtrusive look for modern interiors.
Durable Protection | Secure Operation Constructed from high-grade materials with a secure locking mechanism to prevent unauthorized access and protect internal wiring.
Convenient Wiring | Multi-Entry Knockouts Equipped with multiple pre-punched cable entry points on all sides, significantly simplifying the cable termination process for technicians.

Applications

Construction Site Temporary Power
Industrial Power Distribution Systems
Residential and Apartment Circuit Management
Indoor Modular Electrical Projects

Contact Us

PREV: Outdoor Double-Door Construction Distribution Cabinet
NEXT: High-Performance PV Combiner Box for Solar Power Systems

Specification

About us

Model: PZ30 Series Modular Box
Installation: Flush Mount / Surface Mount
Material: High-grade cold-rolled steel (Flame-retardant finish)
Protection Level: IP30 (Designed for indoor use)

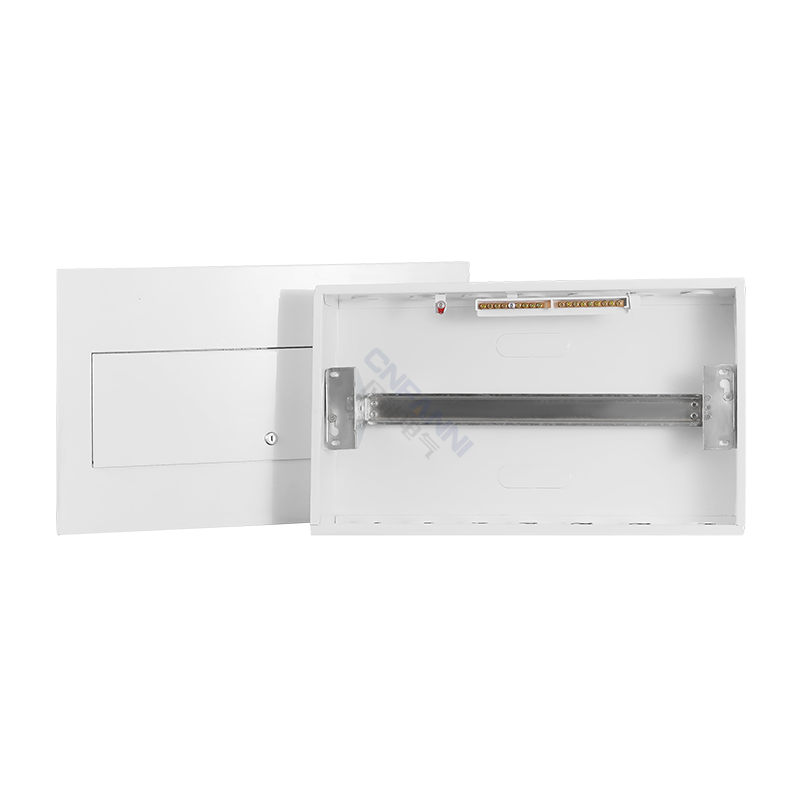

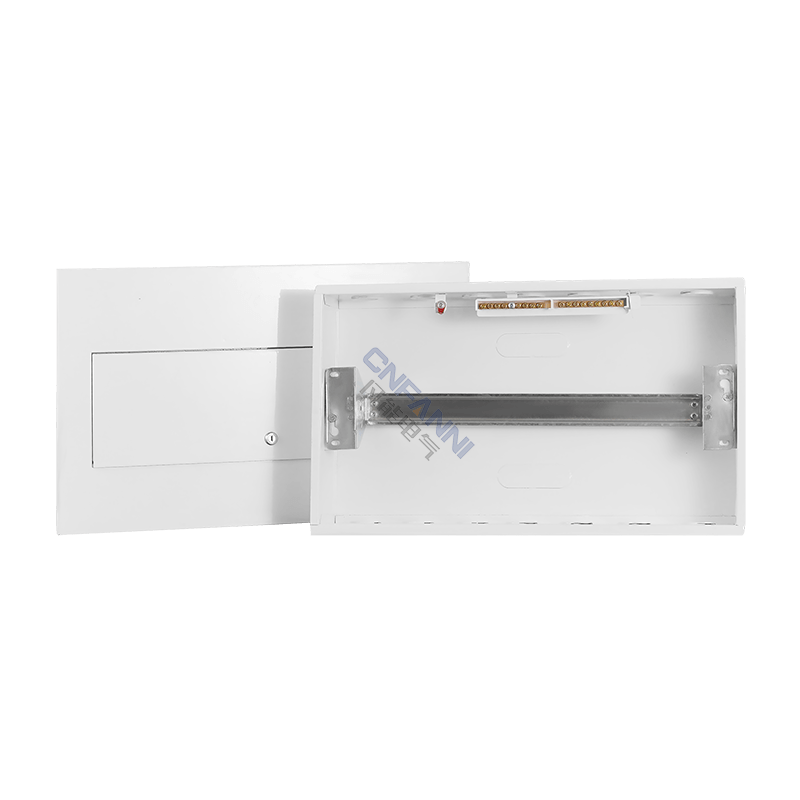

Internal Component: Standard DIN rail / Neutral & Earth busbars
Cable Entry: Pre-punched knockouts on top, bottom, and sides
Access Type: Single-door with integrated key lock

Reference dimensions; customizable upon request
	Surface-mounted dimensions			Recessed Installation Dimensions
Specifications	Length（mm）	Height（mm）	Depth（mm）	Length（mm）	Height（mm）	Depth（mm）
6# Single Row	215	225	90	190	200	90
8# Single Row	245	225	90	220	200	90
10# Single Row	285	275	90	260	250	90
12# Single Row	320	275	90	295	250	90
15# Single Row	375	275	90	350	250	90
18# Single Row	425	275	90	400	250	90
20# Single Row	465	275	90	440	250	90
24# Single Row	535	275	90	510	250	90
24# Double Row	320	455	90	295	430	90
30# Double Row	375	455	90	350	430	90
36# Double Row	425	455	90	400	430	90
40# Double Row	465	455	90	440	430	90
48# Double Row	535	455	90	510	430	90
45# Third Row	375	635	90	350	610	90
54# Third Row	425	635	90	400	610	90
60# Third Row	465	635	90	440	610	90
72# Third Row	535	635	90	510	610	90
