Professional Outdoor CCTV Surveillance Enclosure

Home / Products / Outdoor Series / Professional Outdoor CCTV Surveillance Enclosure

Professional Outdoor CCTV Surveillance Enclosure

The Professional Outdoor CCTV Enclosure protects surveillance systems in harsh environments. As a professional enclosure manufacturer, our factory offers durable cold-rolled steel, IP65–IP66 protection, and custom OEM solutions including tailored dimensions, cutouts, and mounting options for security contractors and system integrators.

Applications of Outdoor CCTV Surveillance Enclosure

The Professional Outdoor CCTV Enclosure is ideal for industrial and commercial projects, including smart city surveillance, traffic and highway monitoring, industrial facility security, and telecom or network infrastructure. Its rugged design and IP65–IP66 protection ensure reliable performance in harsh outdoor environments, supporting contractors, system integrators, and large-scale security projects.

Outdoor CCTV Surveillance Enclosure Customization and OEM Solutions

The Professional Outdoor CCTV Enclosure offers full OEM/ODM customization, including tailored dimensions, pre-drilled cutouts, custom logo options, and configurations for complete or empty enclosures. These flexible solutions allow integrators and contractors to adapt the enclosure to specific project requirements and installation needs.

Outdoor Surveillance Enclosure Structure and Technical Features

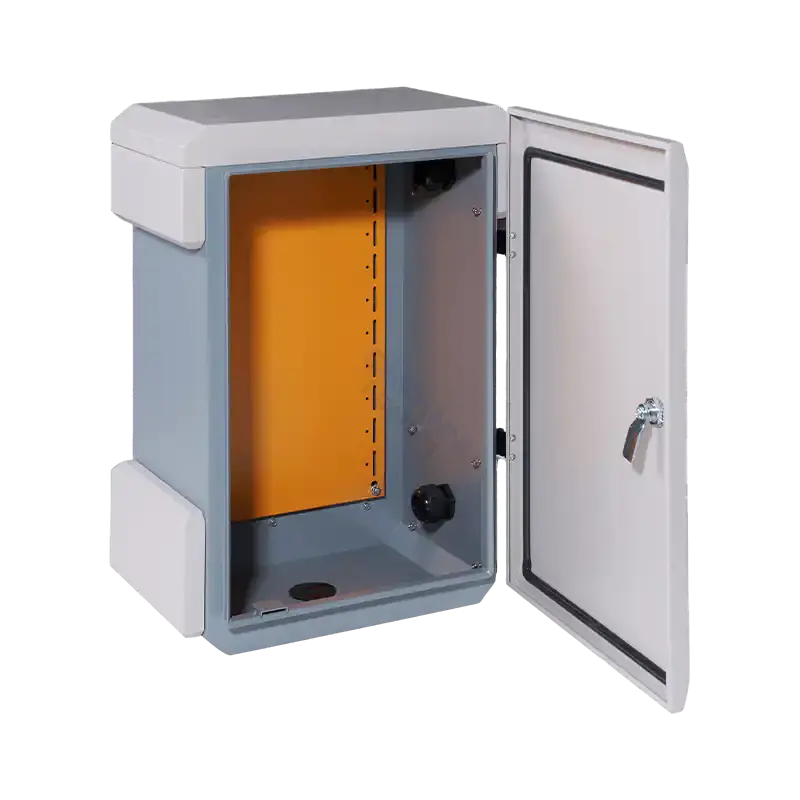

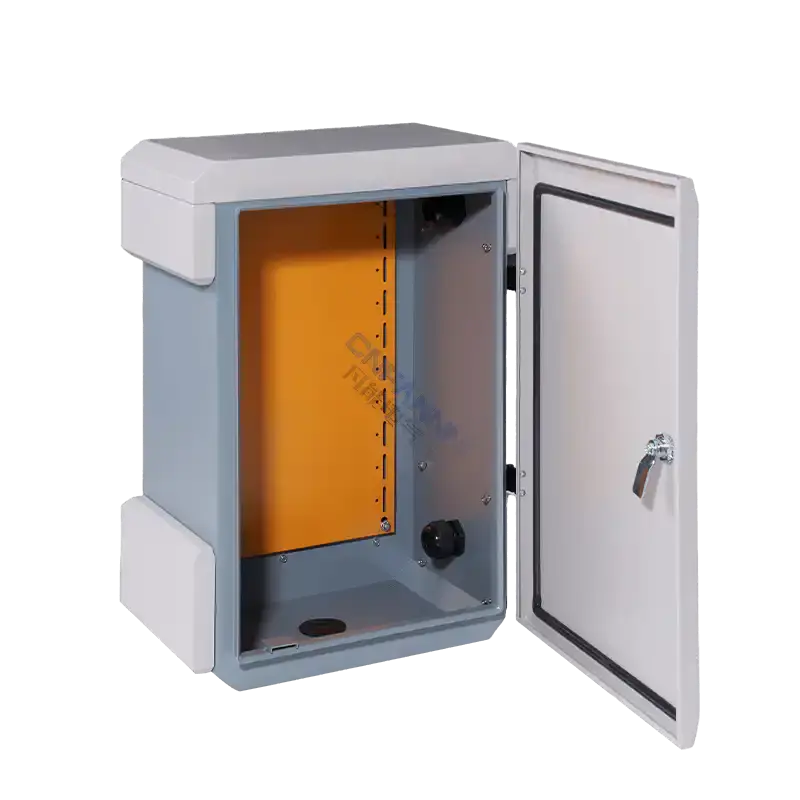

The Professional Outdoor CCTV Enclosure is made of 1.5mm cold-rolled steel with corrosion-resistant coating. Its welded frame, reinforced mounts, and IP65–IP66 sealing provide durable, reliable protection for CCTV systems in harsh outdoor environments.

Professional Outdoor CCTV Surveillance Enclosure
Professional Outdoor CCTV Surveillance Enclosure
Professional Outdoor CCTV Surveillance Enclosure
Professional Outdoor CCTV Surveillance Enclosure
Professional Outdoor CCTV Surveillance Enclosure
Professional Outdoor CCTV Surveillance Enclosure
Professional Outdoor CCTV Surveillance Enclosure

Model:

Professional Outdoor CCTV Surveillance Enclosure

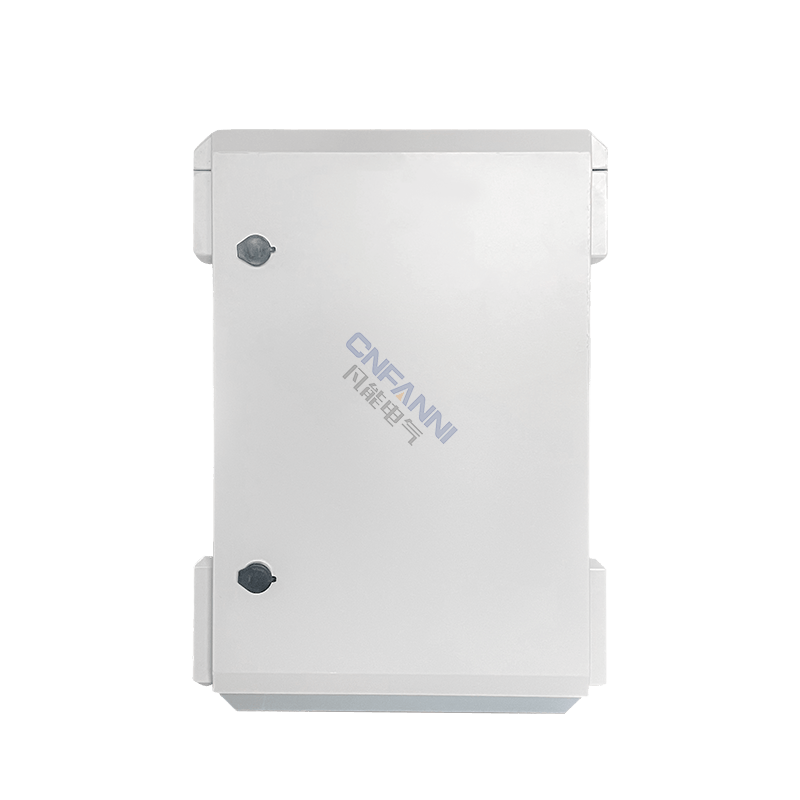

This Outdoor Surveillance Control Box is a heavy-duty housing solution designed to protect sensitive security electronics, power supplies, and network equipment. Engineered for reliability in harsh environments, it ensures the continuous operation of CCTV systems, traffic monitoring, and telecommunication hubs.

Key Advantages

  • High-Performance Structural Steel | 1.5mm Gauge Manufactured from 1.5mm thick high-grade cold-rolled or galvanized steel, providing a robust, anti-vandal chassis that maintains structural integrity against physical impact and external stress.
  • Dual-Protection Weatherproofing | IP65 - IP66 Rating Equipped with a precision-poured polyurethane (PU) airtight gasket and an integrated rain shield (overhanging lid), preventing water ingress and dust accumulation in extreme weather conditions.

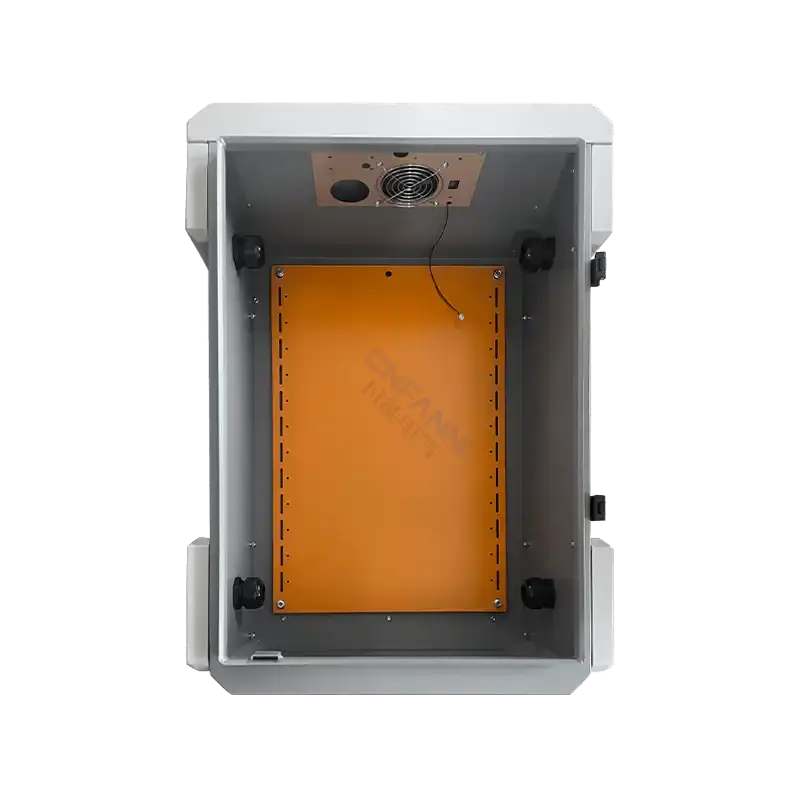

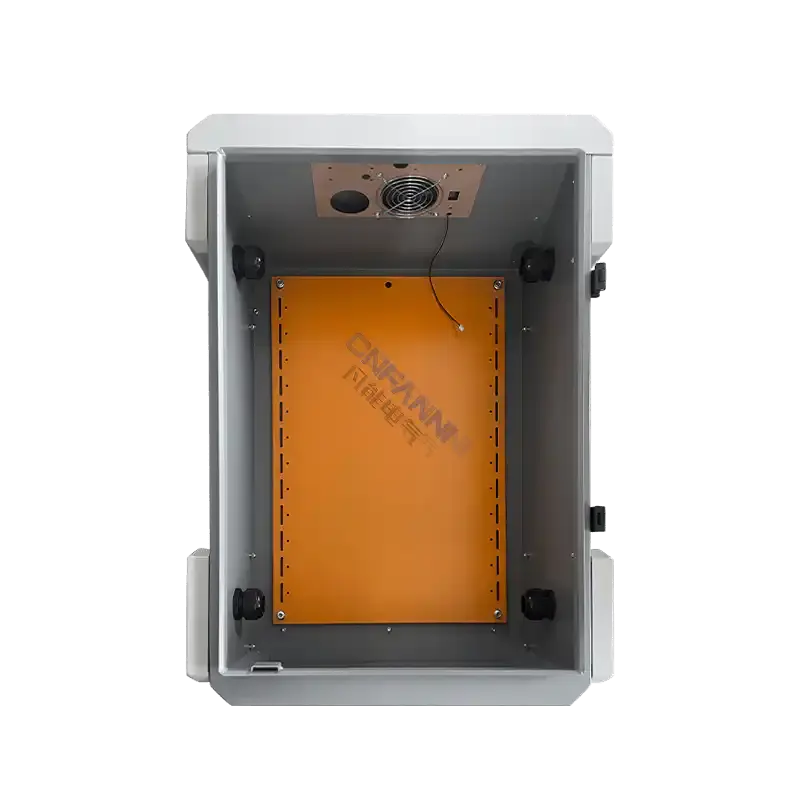

  • Optimized Thermal Management | Passive Airflow System Features professional-grade louvered vents with internal fine-mesh filters, allowing for effective heat dissipation from internal DVRs/Switches while maintaining high-level protection against insects and debris.
  • C4/C5 Corrosion Resistance | UV-Stable Coating Treated with a 100μm+ thick architectural-grade electrostatic powder coating, delivering superior salt-spray resistance and UV protection for long-term outdoor deployment in coastal or industrial areas.

Applications

  • Smart City and Public Safety Surveillance
  • Traffic Monitoring and Highway Control Systems
  • Industrial Site Security and Perimeter Fencing
  • Telecommunication and Wireless Base Stations
Contact Us
PREV: Heavy-Duty Pedestal EVSE Enclosure for High-Power Charging Infrastructure
NEXT: Professional Grade Stainless Steel Electric Meter Enclosure

Specification

About us

Contact us

Product Name: Weatherproof Outdoor Surveillance Enclosure
Material: Heavy-duty cold-rolled steel / Galvanized steel (1.5mm thickness)
Surface Finish: RAL 7035 light grey powder coating (80-120μm thickness)

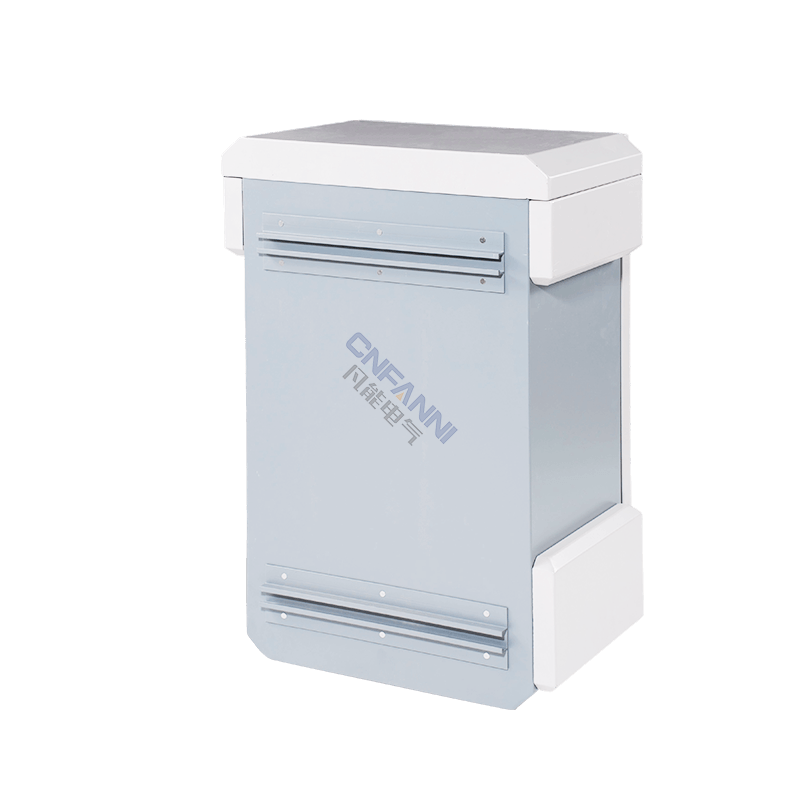

Installation: Pole-mount / Wall-mount compatibility with reinforced brackets
Internal Hardware: Removable galvanized mounting plate and standard DIN rail
Security: Industrial-grade 3-point locking system or padlock hasp options
Protection Level: IP65 / IP66 (High-level dust and water-jet protection)

Reference dimensions; customizable upon request
Height（mm） Length（mm） Depth（mm） Thickness（mm）
250 300 140 0.5—2.0
300 400 160
300 400 200
400 500 160
400 500 200
400 500 250
400 600 200
500 600 200
500 600 250
500 800 200
500 700 200
600 700 200
600 800 200
600 800 250
600 1000 200
700 900 200
700 900 250
800 1000 200
800 1000 250

Wenzhou Fanneng Electric Co., Ltd.

Wenzhou Fanneng Electric Co., Ltd. specializes in the professional production and processing of a wide range of products, including AE Rittal cabinets, complete distribution cabinets, charging boxes, power cabinets, foundation boxes, and distribution boxes. With rigorous production processes and a scientific quality management system as our cornerstone, we ensure that every product meets high quality standards. We are committed to providing customers with safe, reliable, and efficient electrical solutions, and can customize our products to your requirements.

We can provide you with a satisfactory plan!

What's your name?

What's your email address?

What's your telephone?

Your message

Send
600V Stainless Steel Industrial Power Distribution Cabinet

600V Stainless Steel Industrial Power Distribution Cabinet

Outdoor Stainless Steel Distribution Enclosure

Outdoor Stainless Steel Distribution Enclosure

Industrial Electrical Test Bench and Control Console

Industrial Electrical Test Bench and Control Console

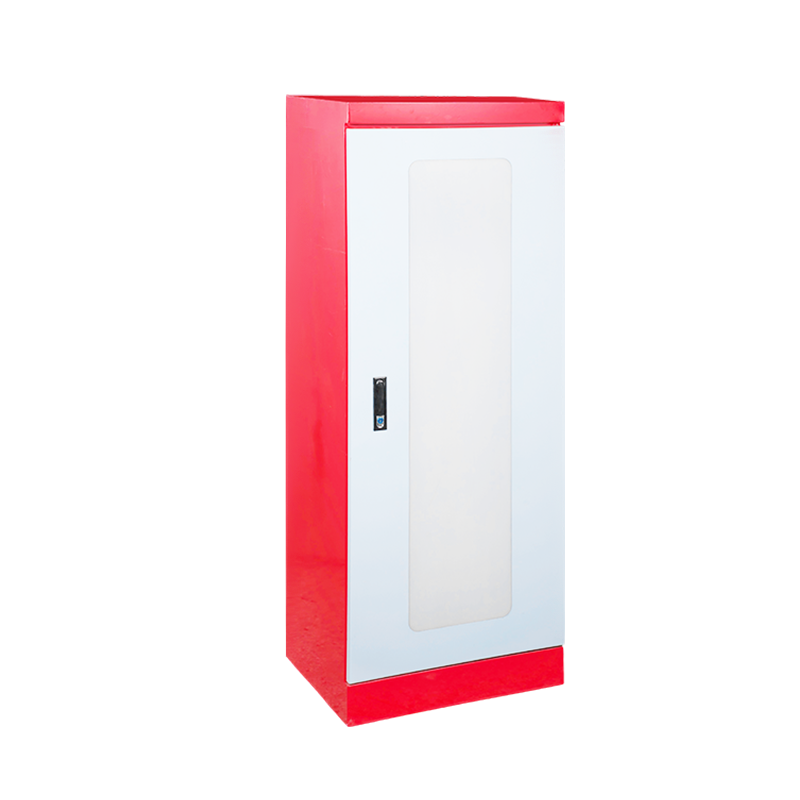

Surface-Mounted Fire Safety Extinguisher Cabinet
