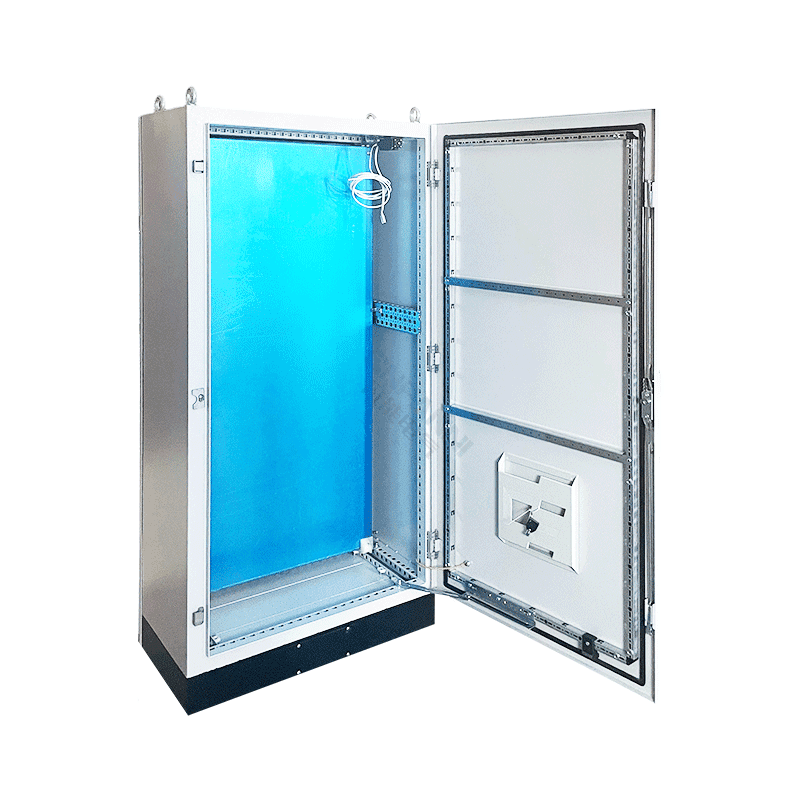

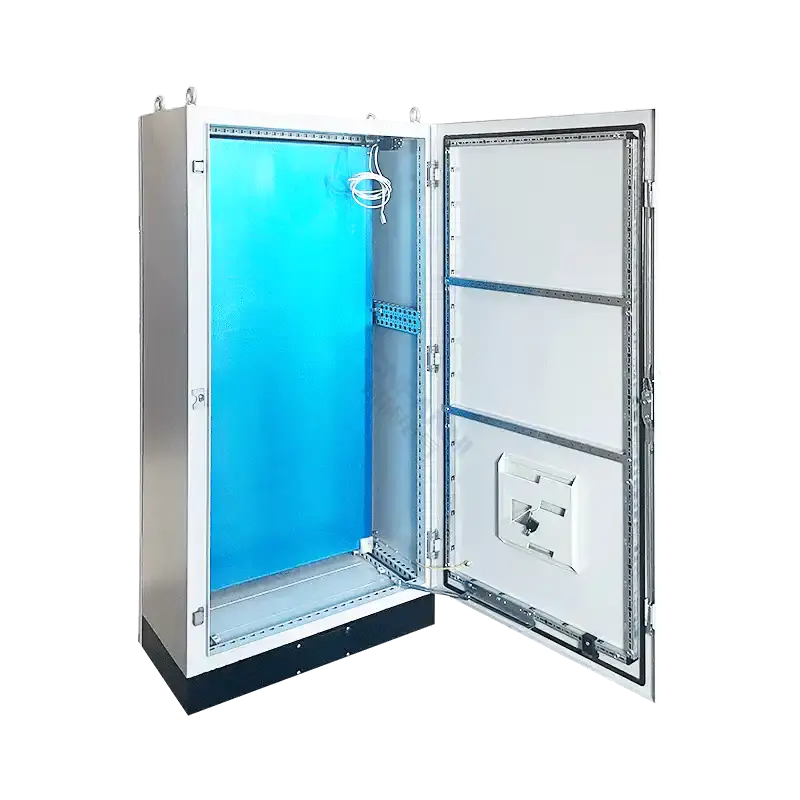

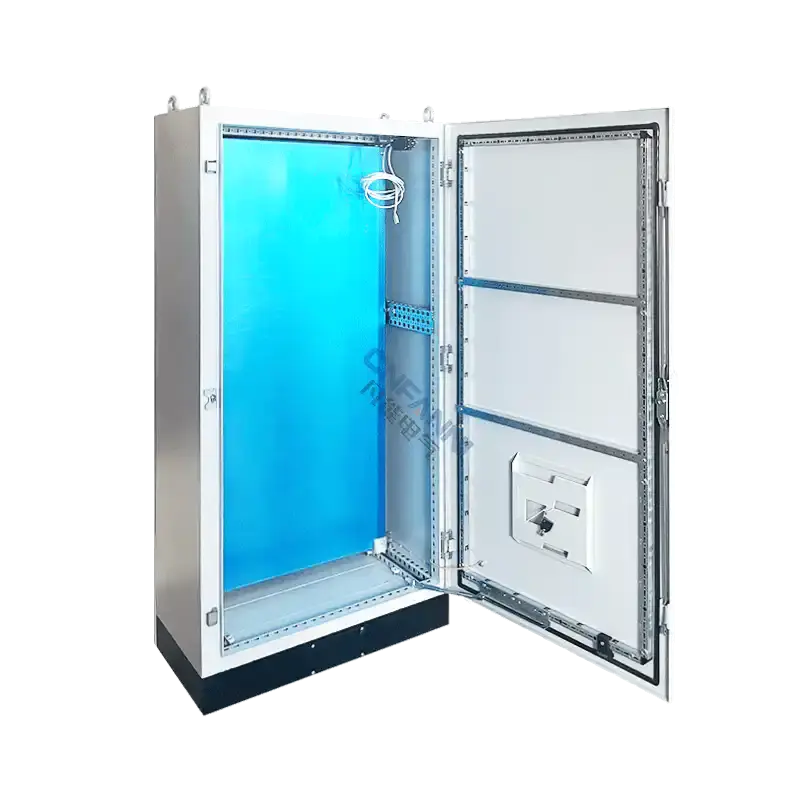

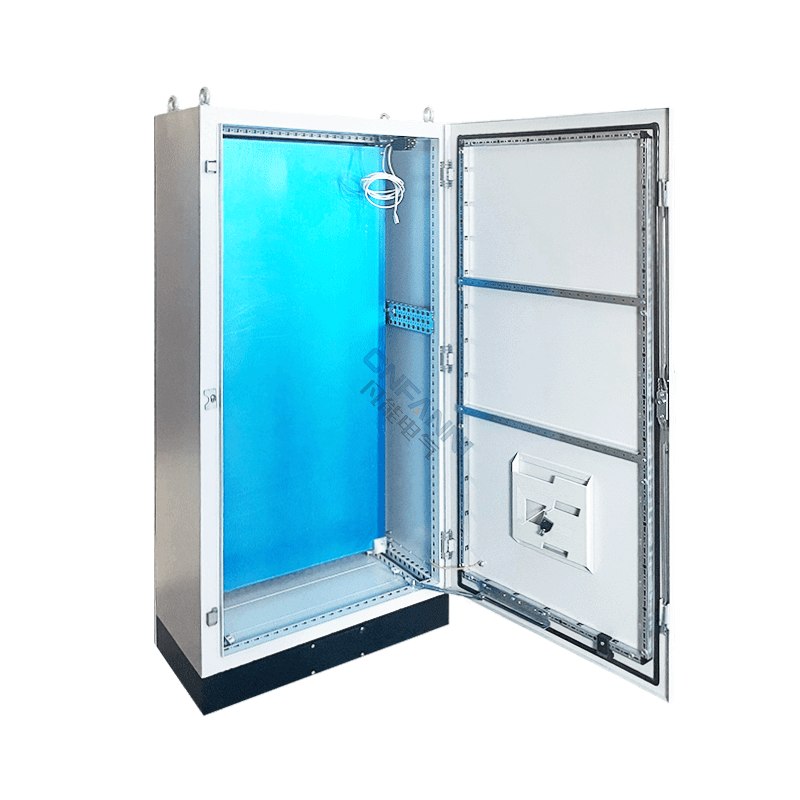

ES Series 5-Fold Profile Monoblock Control Cabinet

The ES Series Control Cabinet features a precision-engineered 5-fold profile system with a fully welded monoblock frame. This design offers an ideal balance of structural rigidity and cost-efficiency, providing a high-security environment for electrical switchgear and automation control components in demanding industrial settings.

Key Advantages

• Integrated 5-Fold Welded Frame | Enhanced Rigidity Unlike modular bolt-on systems, the ES series utilizes a 5-fold profile that is fully welded into a monoblock structure. This provides superior torsional stiffness and ensures long-term alignment even in environments with mechanical vibration.
• High-Performance Protection | IP55 - IP66 Rating Due to its non-detachable side panel construction and precision-poured PU gaskets, the ES cabinet inherently offers a tighter seal, achieving a high protection rating of IP55 to IP66 against dust, oil, and water ingress.
• Optimized Internal Mounting | 2.5mm Galvanized Plate Equipped with a heavy-duty, depth-adjustable galvanized mounting plate (2.5mm thickness), designed to support heavy transformers and high-density industrial control gear with ease.
• Industrial Surface Engineering | RAL 7035 Finish The enclosure is finished with an 80-120μm thick electrostatic powder coating, providing excellent chemical resistance and a professional look suitable for modern factory floors.

Applications

• Factory Automation and Line Control
• Pump and HVAC Control Systems
• Industrial Power Distribution Units (PDU)
• Water Treatment and Infrastructure Projects
