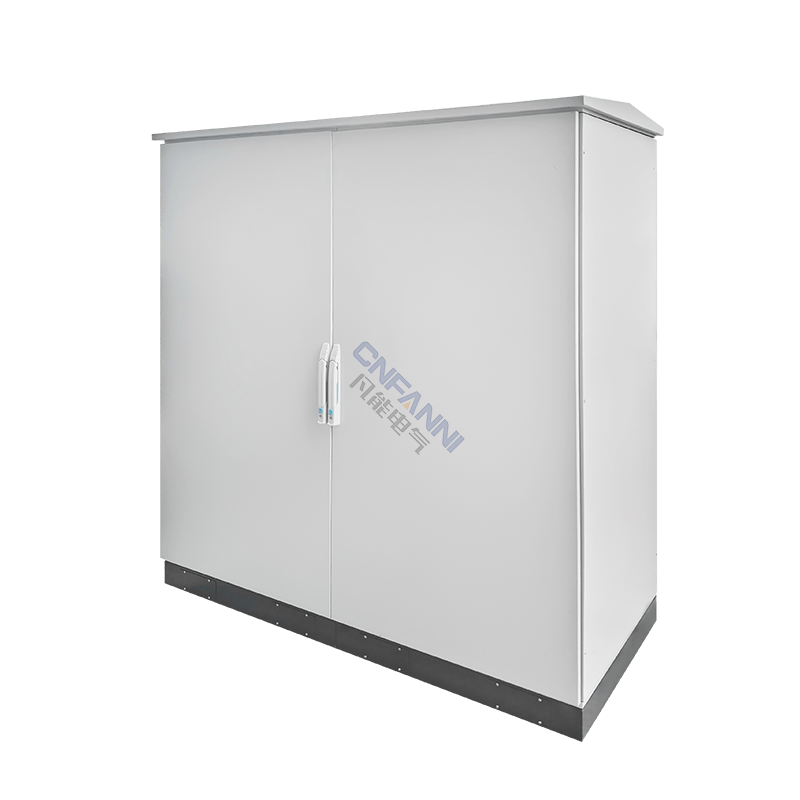

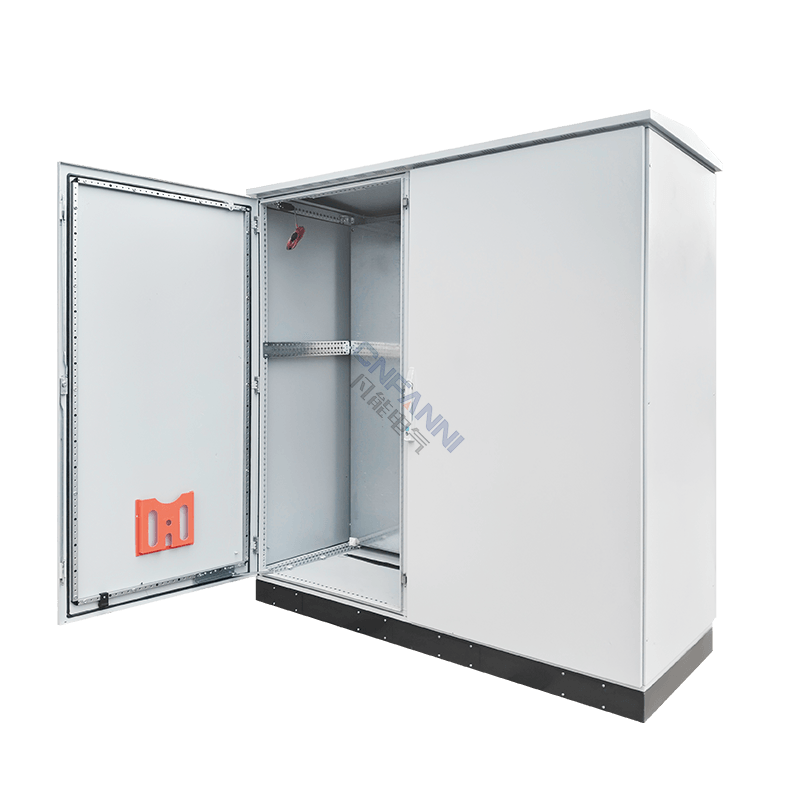

Premium PS Series 9-Fold Profile Modular Double-Door Cabinet

The PS series represents the pinnacle of modular enclosure engineering. Featuring a sophisticated 9-fold profile frame system, this double-door cabinet is designed for large-scale industrial automation and complex power distribution. Its unique modular architecture allows for unlimited side-by-side baying and offers maximum internal accessibility for high-density component integration.

Key Advantages

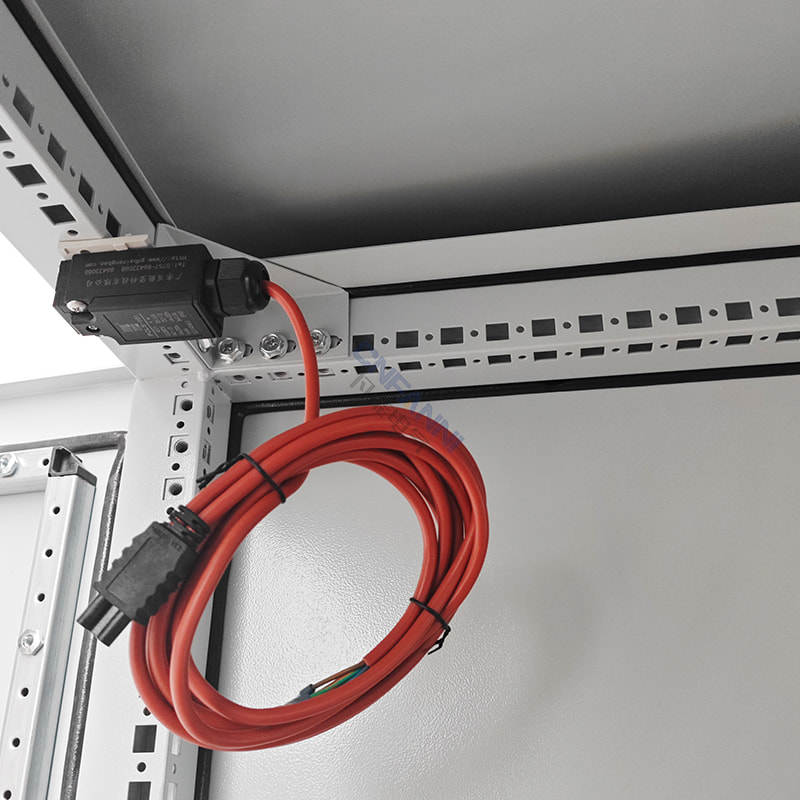

• High-Precision 9-Fold Frame | 2.0mm Structural Steel Engineered with a high-rigidity 9-fold profile frame connected by high-strength corner joints. This architecture provides superior torsional strength and a static load-bearing capacity exceeding 1000kg, far outperforming traditional welded structures.
• Full Modular Versatility | Seamless Baying Designed as a "system enclosure," the PS series supports multi-directional expansion. All panels—including top, sides, and rear—are fully detachable, allowing cabinets to be bayed together to form long-row control centers with ease.

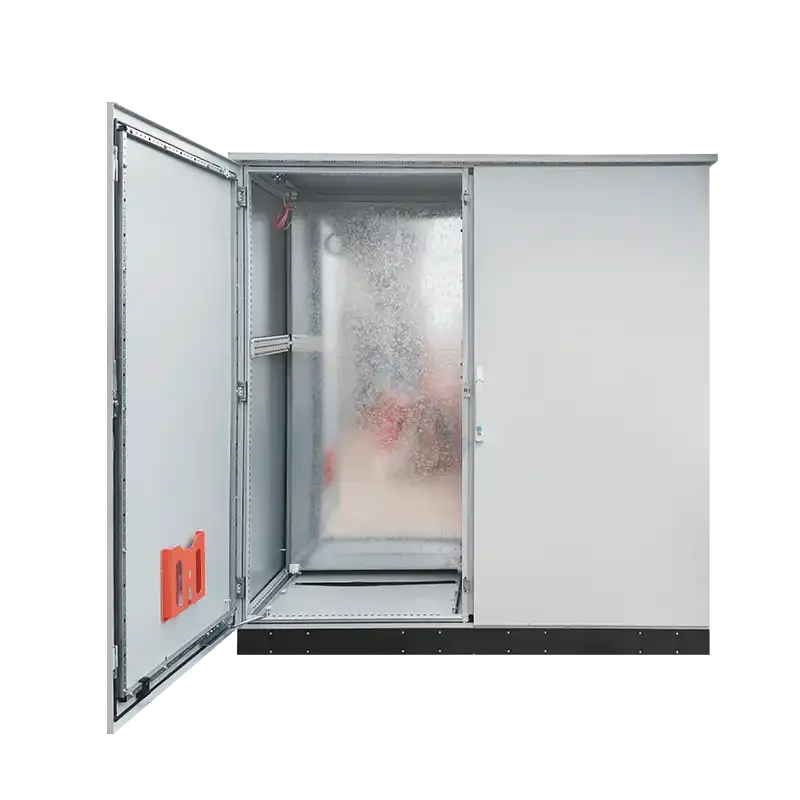

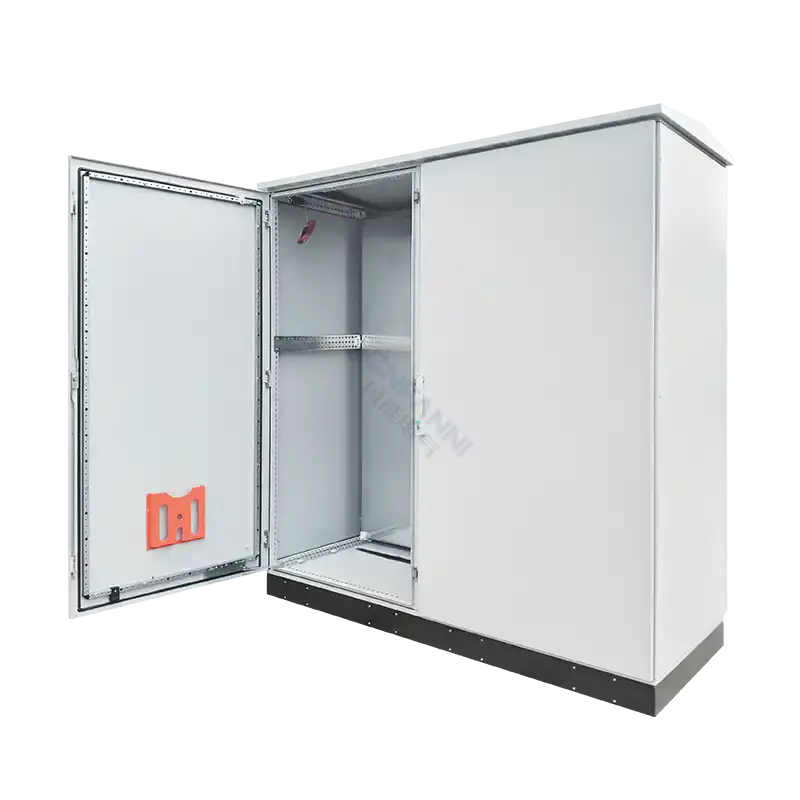

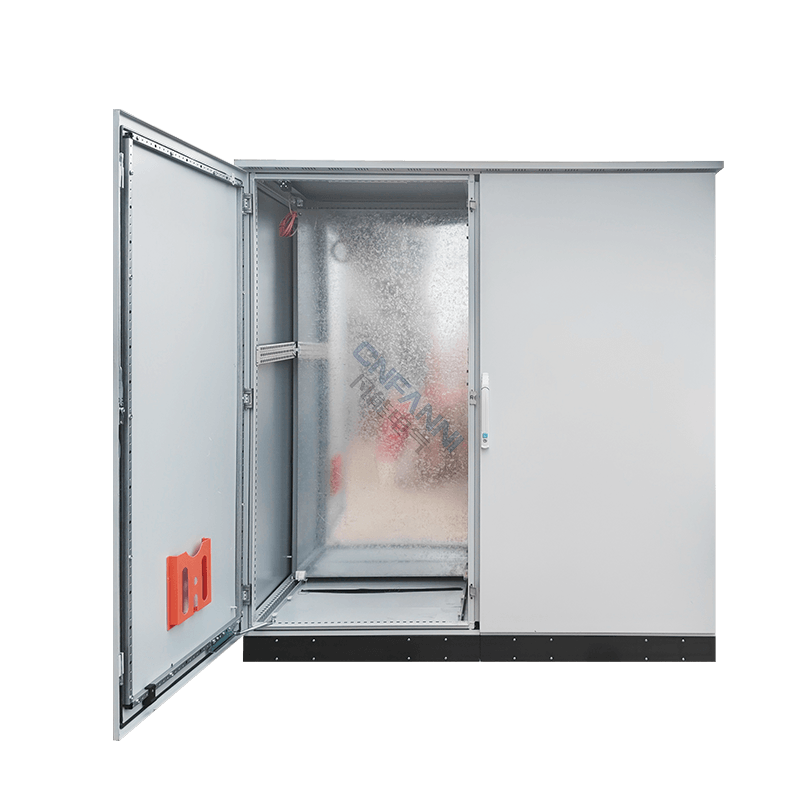

• Synchronized Double-Door Access | High-Capacity Storage Equipped with a precision-engineered double-door system, providing an extra-wide opening (up to 1200mm) without the need for a center mullion. This allows for the installation of oversized busbars and heavy-duty switchgear.
• C4-Level Surface Protection | Industrial Sealing The entire frame and panel set undergo an electrophoretic dip-priming and 120μm electrostatic powder coating. Combined with a continuous CNC-poured PU gasket, it achieves a reliable IP55 protection rating against dust and moisture.

Applications

• Large-Scale MCC (Motor Control Centers)
• High-Voltage Switchgear and Transformer Housing
• Automotive and Robotic Assembly Line Controllers
• Data Center Power Distribution and Network Hubs
