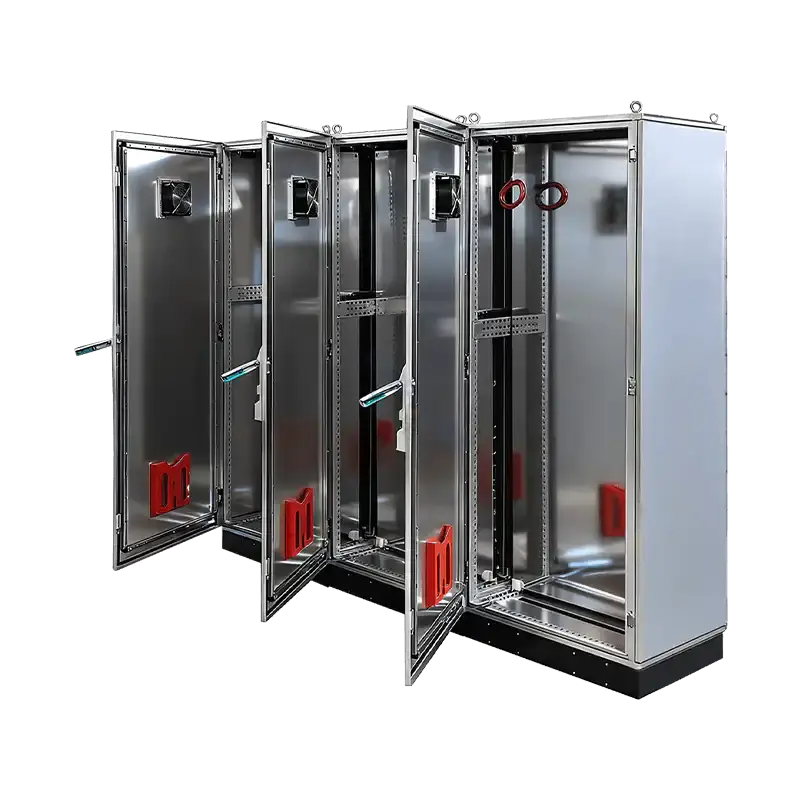

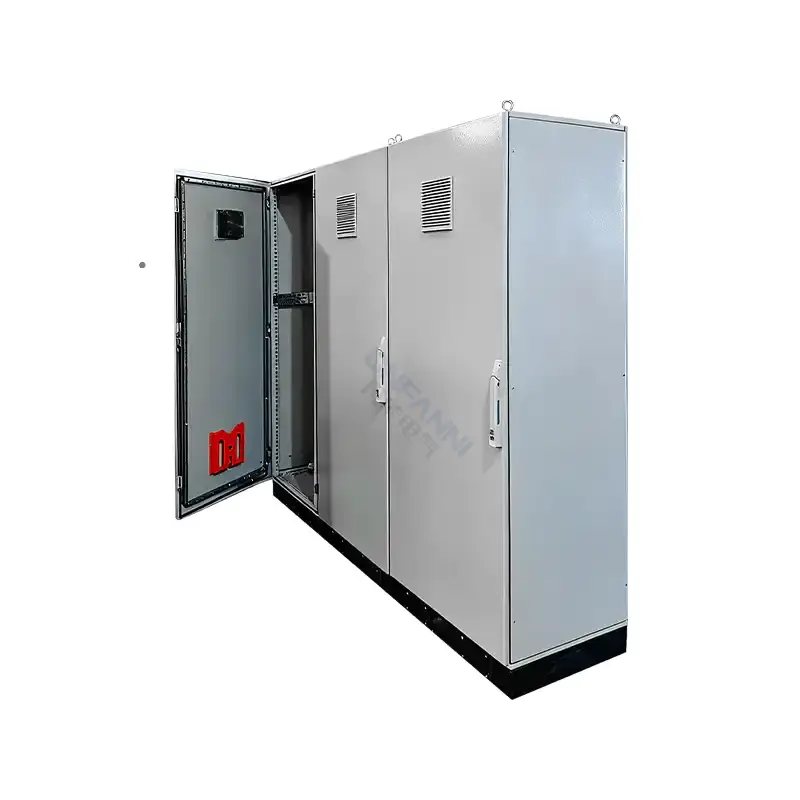

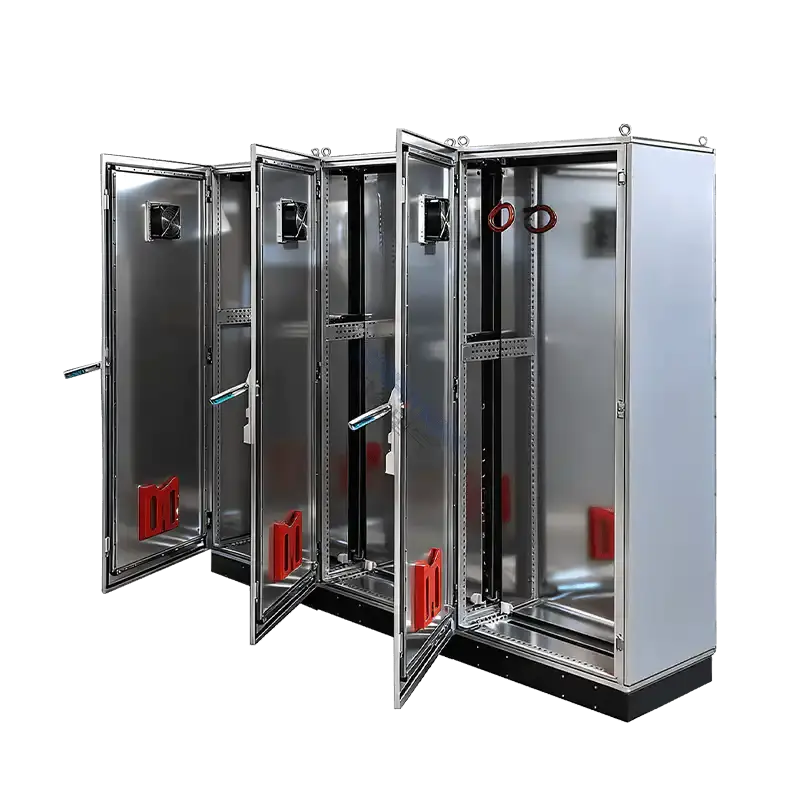

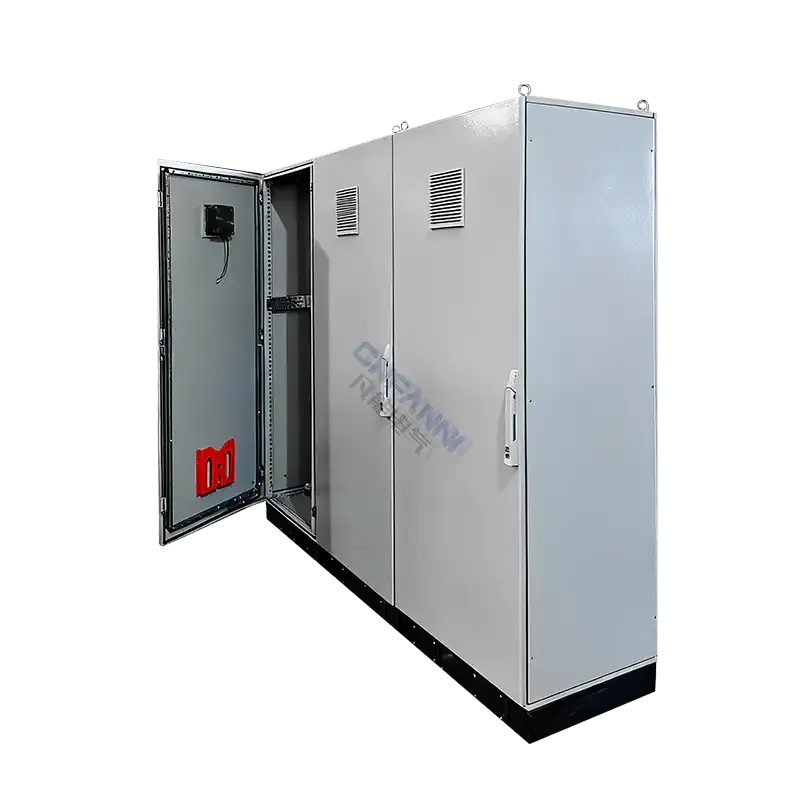

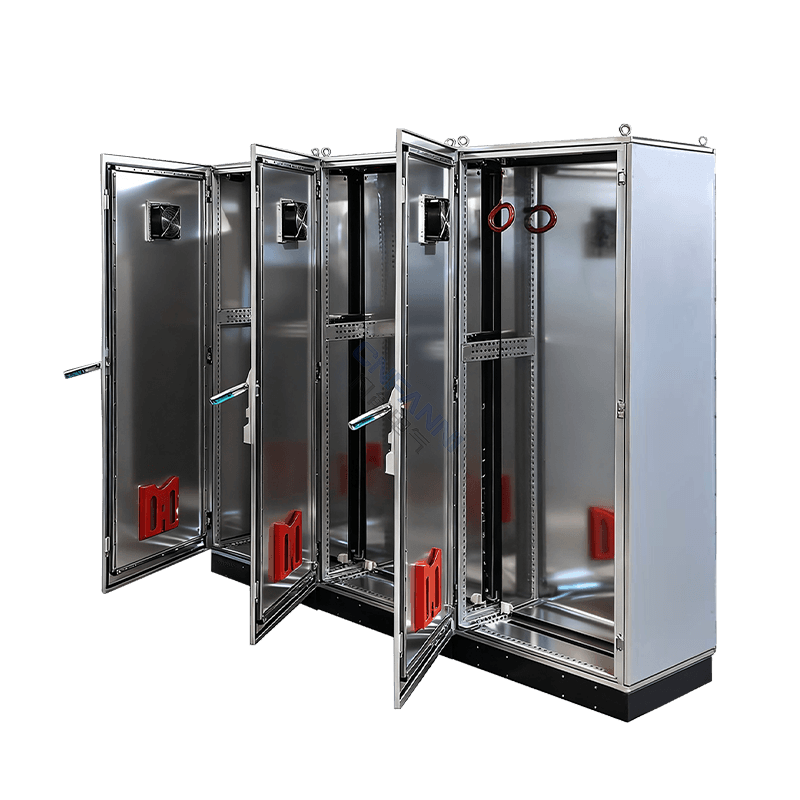

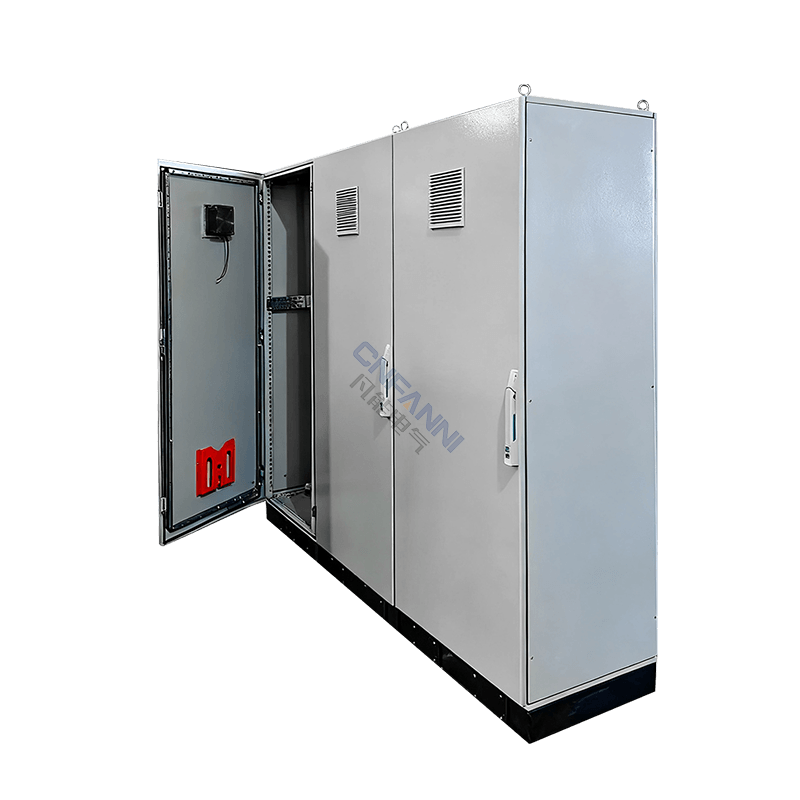

ps Series 9-Fold Modular Baying System

High-Precision PS Series 9-Fold Profile Bayed Cabinet System

The PS Series Bayed Cabinet System is the definitive solution for large-scale industrial automation and centralized power distribution. Utilizing the industry-standard 9-fold profile frame, this modular system is engineered for maximum structural rigidity and infinite scalability, allowing multiple units to be bayed together to form a seamless, high-capacity control center.

Key Advantages

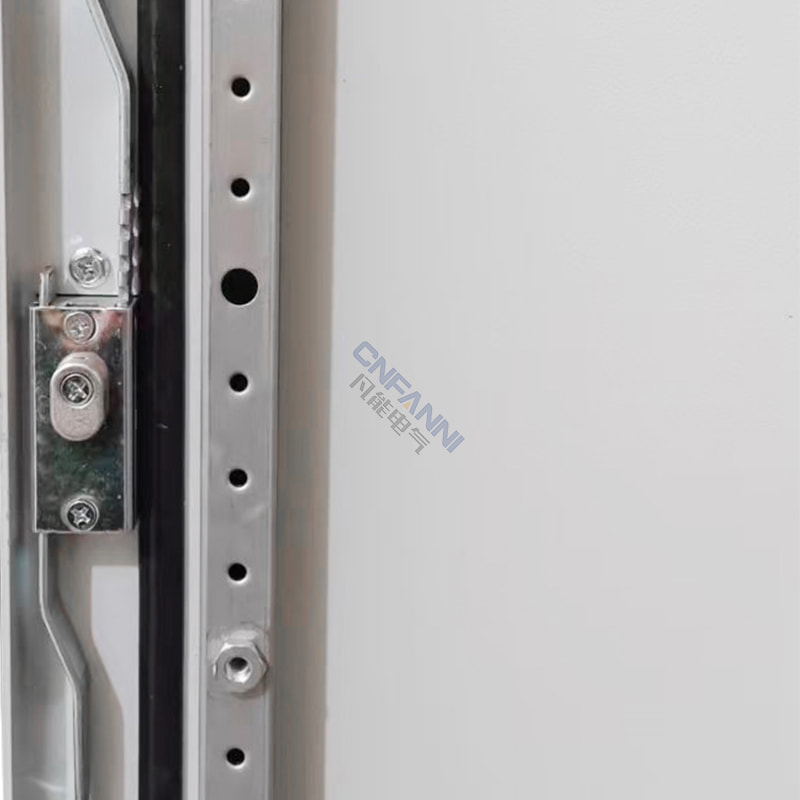

• Industry-Leading 9-Fold Profile | 2.0mm Frame The core frame is fabricated from 2.0mm 9-fold profile steel connected by high-strength zinc-plated corner joints. This specialized geometry provides exceptional torsional resistance and a static load-bearing capacity of up to 1200kg per unit.
• Seamless Modular Baying | Infinite Scalability Designed as a fully modular system, these cabinets can be easily bayed side-by-side using professional baying kits. Removable side panels and top plates ensure easy cross-cabinet wiring and busbar integration for complex line-control systems.
• Advanced Sealing & Protection | IP55 Rating Each cabinet in the suite features CNC-poured high-resilience polyurethane (PU) gaskets. When bayed, specialized sealing strips maintain a continuous barrier against industrial dust, moisture, and oil mist, meeting strict IP55 protection standards.

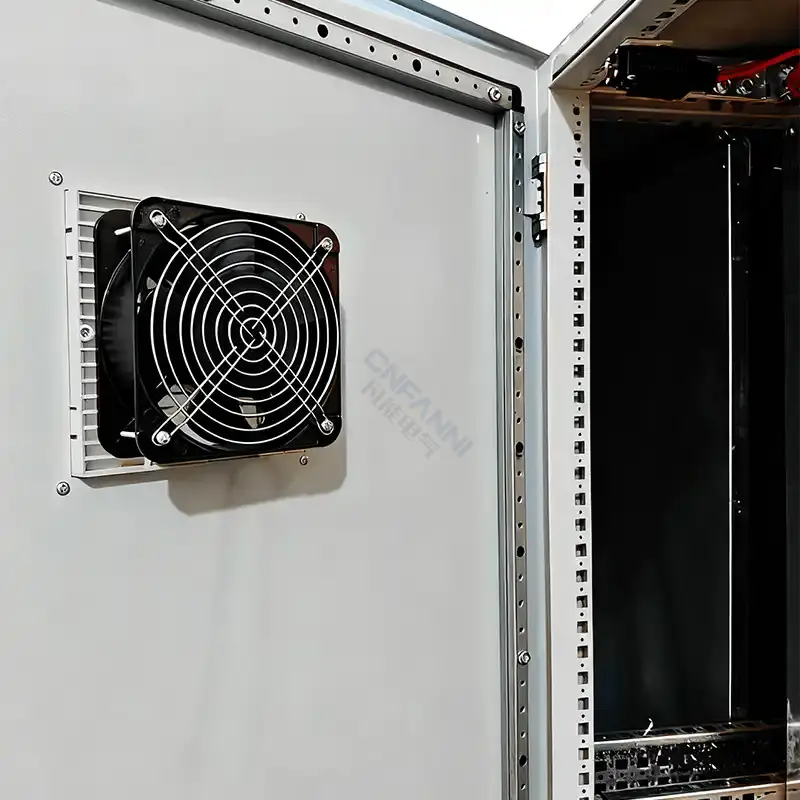

• Optimized Thermal & Cable Management The system is fully compatible with industrial climate control units (AC/Fans) and heavy-duty busbar supports. Large-area modular cable entry plates at the bottom provide flexible and organized wiring for hundreds of control signals.

Applications

• Automotive Manufacturing and Robotic Assembly Lines
• Large-Scale MCC (Motor Control Centers)
• New Energy Storage and Solar Inverter Stations
• Water Treatment and Heavy Industrial Process Control
