Embedded Metal Lighting Panel Housing

Home / Products / Indoor Series / Embedded Metal Lighting Panel Housing

Model:

Embedded Metal Lighting Panel Housing

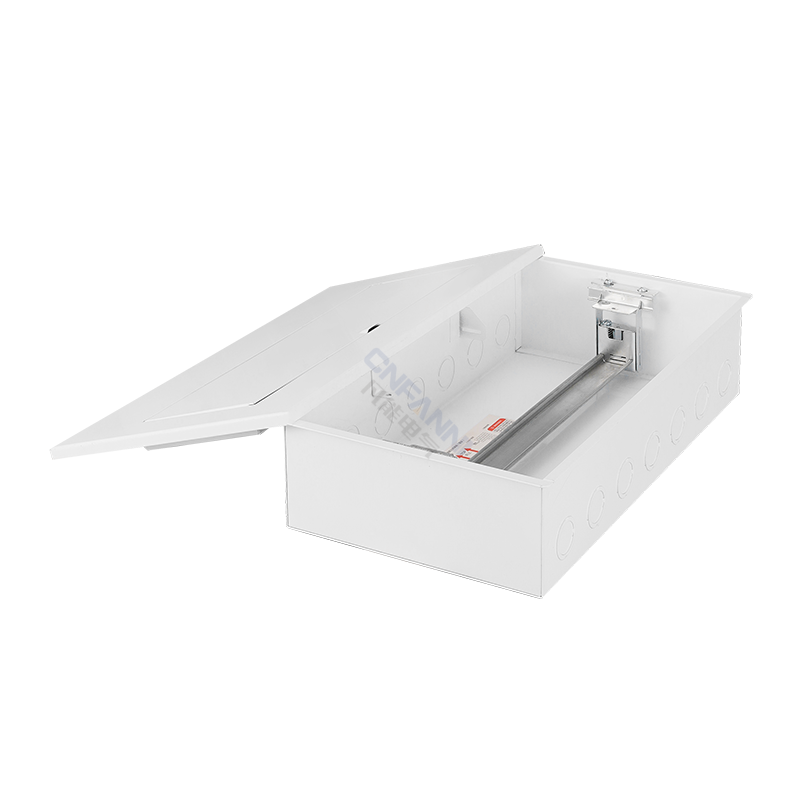

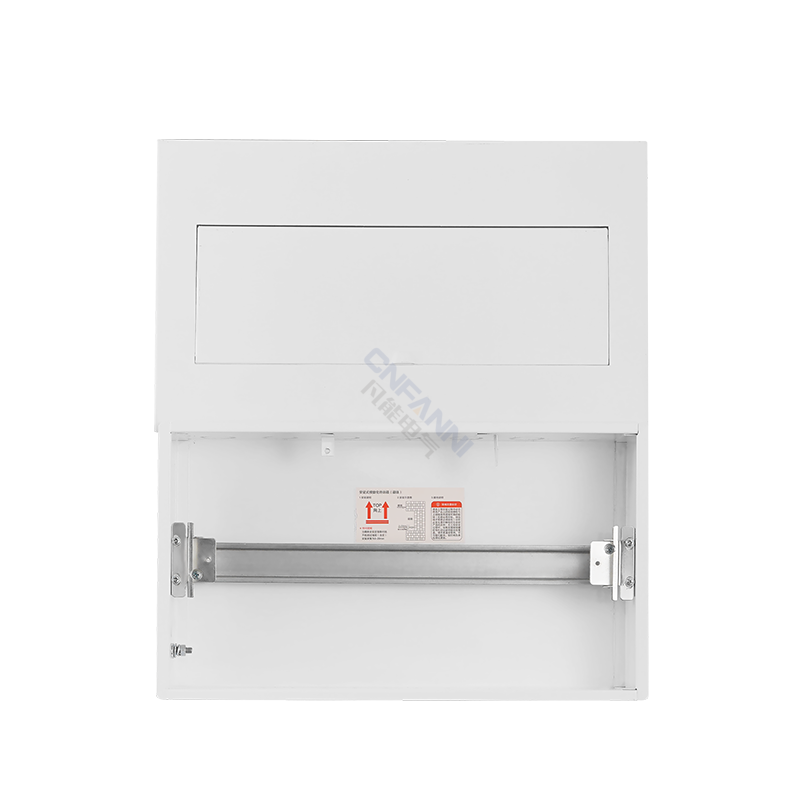

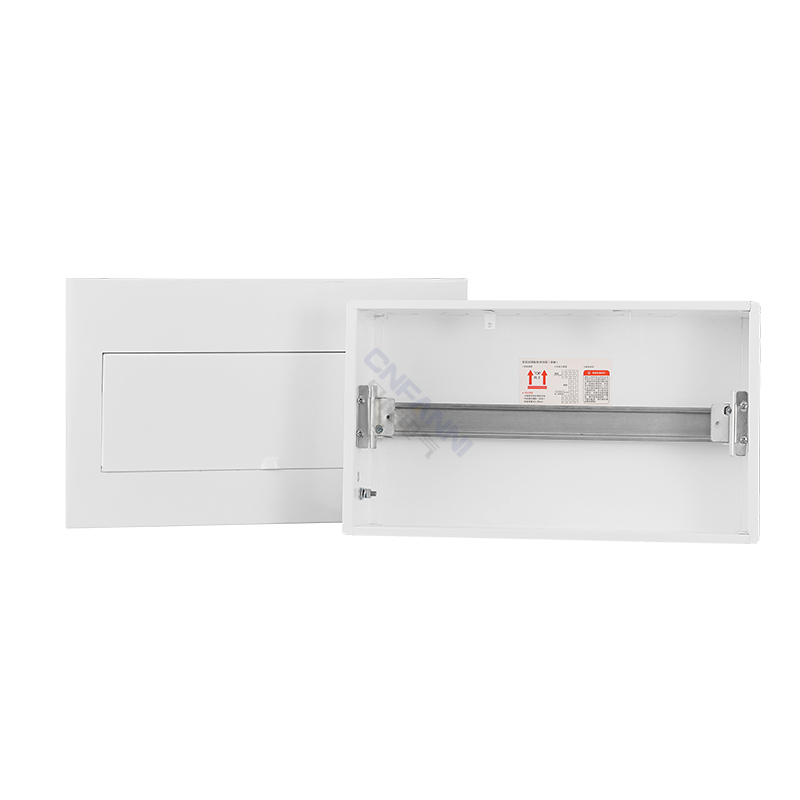

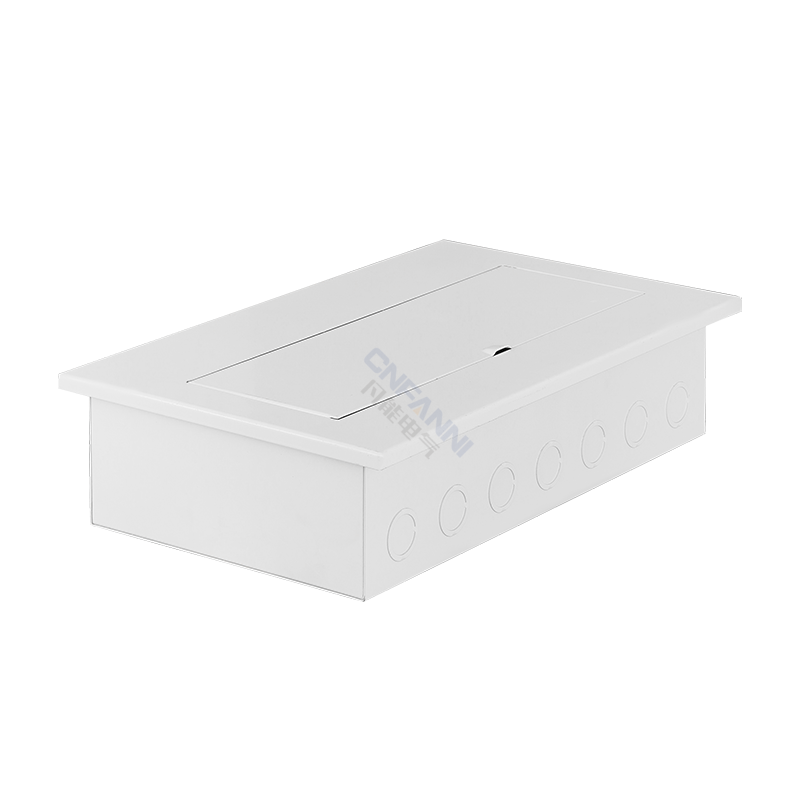

The box body and panel are made of bent and welded metal materials. A transparent small door is embedded in the panel. There are two types of installation: open installation and concealed installation. The box is equipped with an insulating seat, grounding and zero terminals and guide rails. There are inlet and outlet holes on the upper and lower bottoms. It is suitable for AC 50Hz, rated voltage 220V and 380V residential, station, commercial network and industrial and mining enterprises as a complete set of devices to control electrical equipment and protect against overload, short circuit, overvoltage and leakage.

Contact Us

Specification

About us

Contact us

Reference dimensions; customizable upon request
Surface-mounted dimensions Recessed Installation Dimensions
Specifications Length(mm) Height(mm) Depth(mm) Length(mm) Height(mm) Depth(mm)
6# Single Row 215 225 90 190 200 90
8# Single Row 245 225 90 220 200 90
10# Single Row 285 275 90 260 250 90
12# Single Row 320 275 90 295 250 90
15# Single Row 375 275 90 350 250 90
18# Single Row 425 275 90 400 250 90
20# Single Row 465 275 90 440 250 90
24# Single Row 535 275 90 510 250 90
24# Double Row 320 455 90 295 430 90
30# Double Row 375 455 90 350 430 90
36# Double Row 425 455 90 400 430 90
40# Double Row 465 455 90 440 430 90
48# Double Row 535 455 90 510 430 90
45# Third Row 375 635 90 350 610 90
54# Third Row 425 635 90 400 610 90
60# Third Row 465 635 90 440 610 90
72# Third Row 535 635 90 510 610 90
