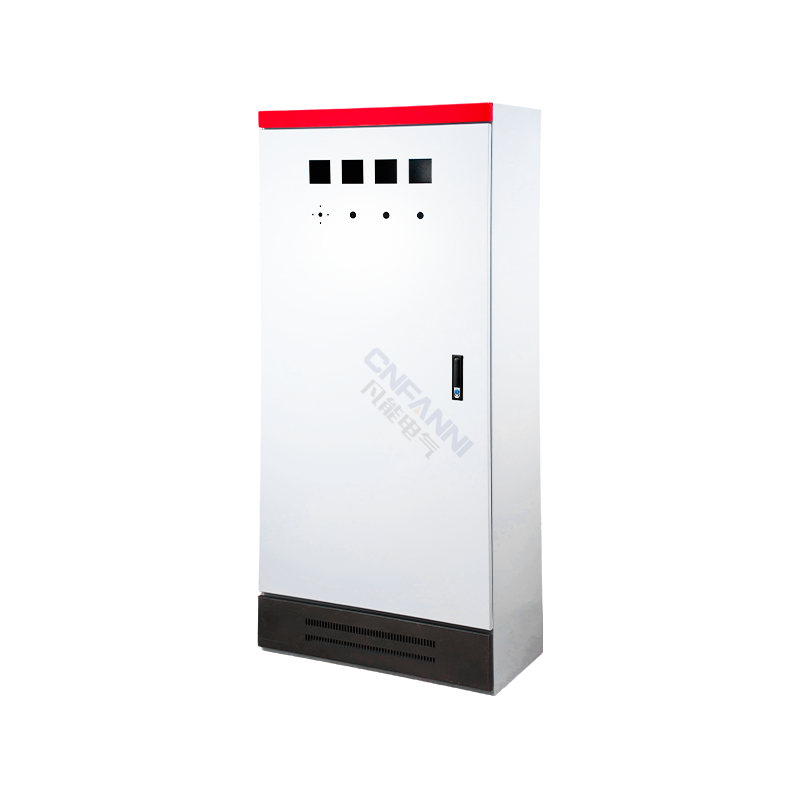

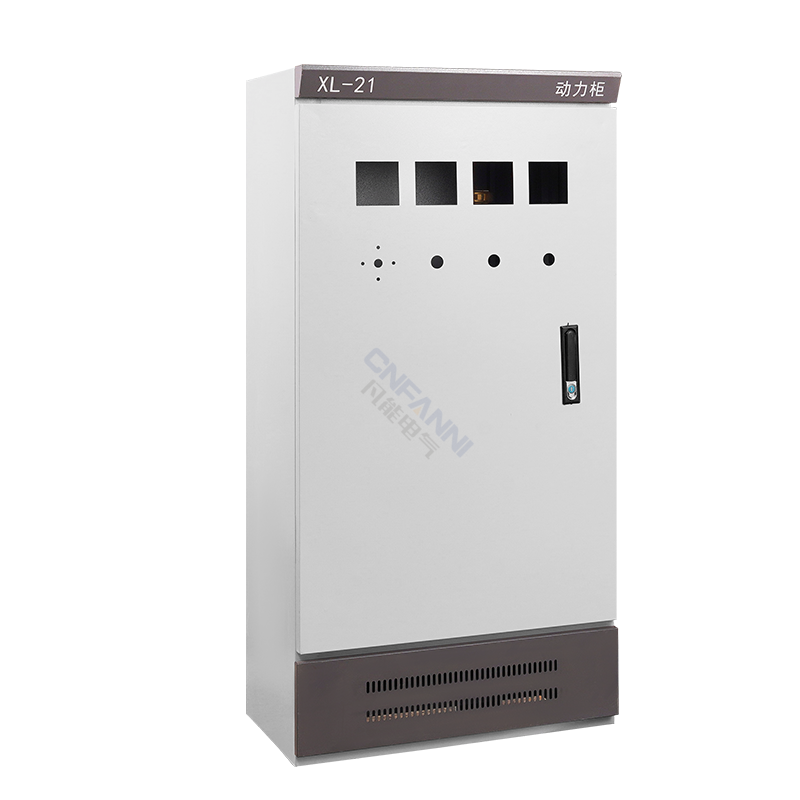

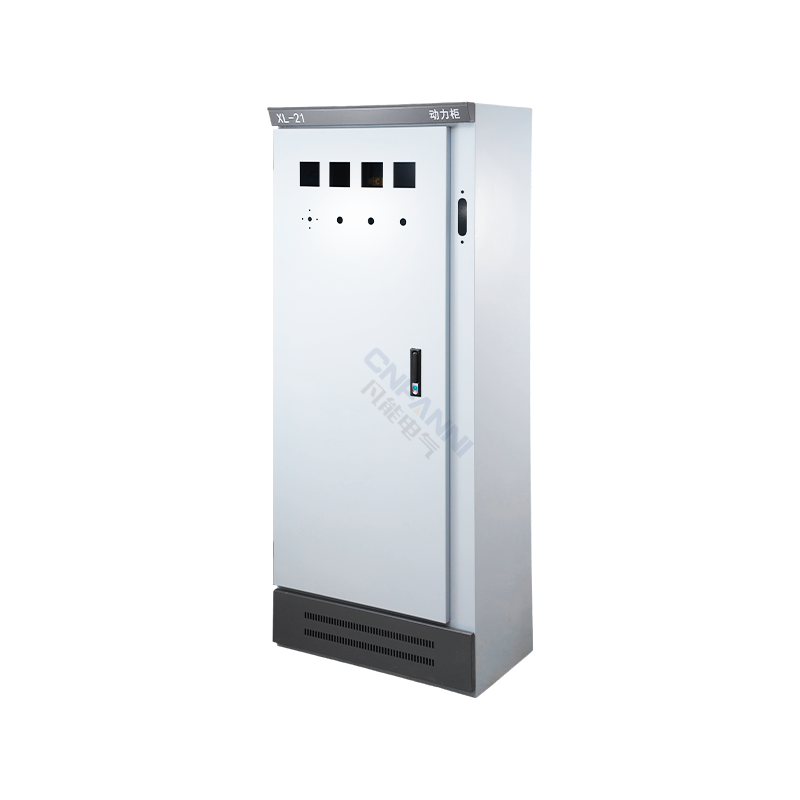

The IP66 power distribution cabinet electrical switch box is a high-protection-level power distribution equipment designed for outdoor environments. It has outstanding structural strength, waterproof and dustproof performance, and flexible installation adaptability.

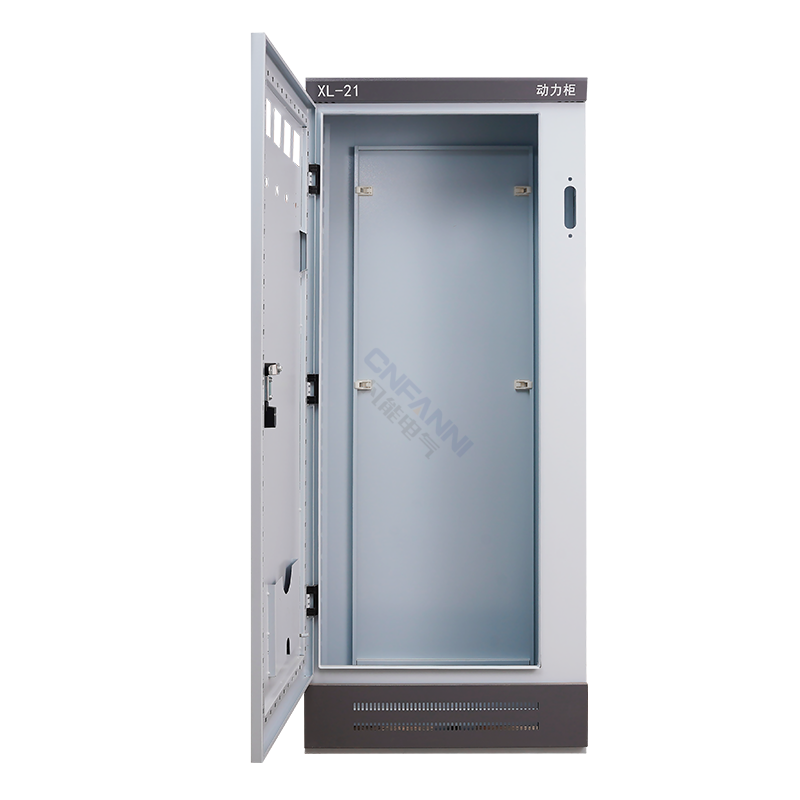

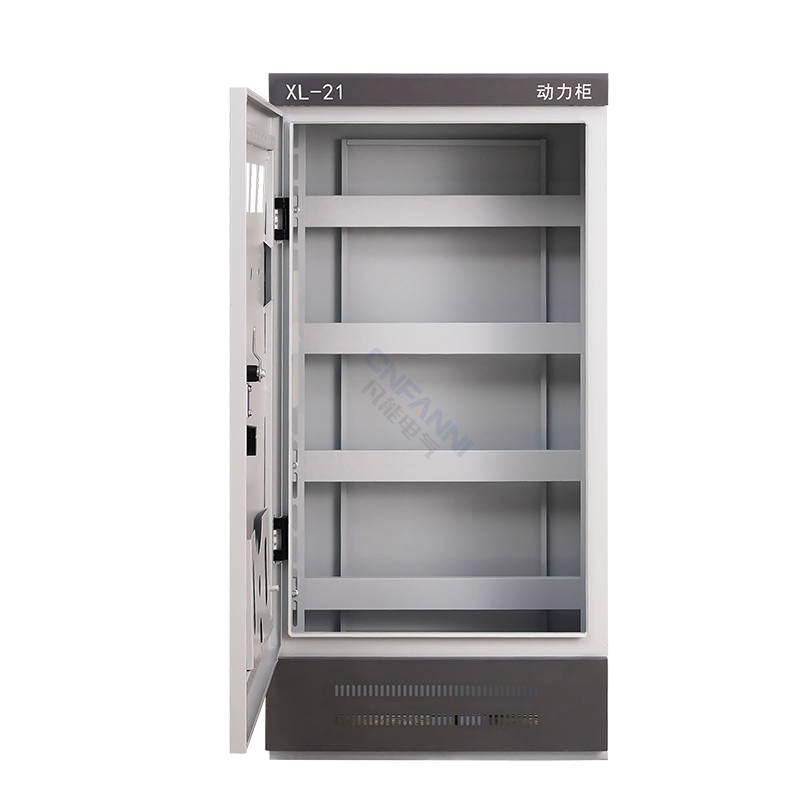

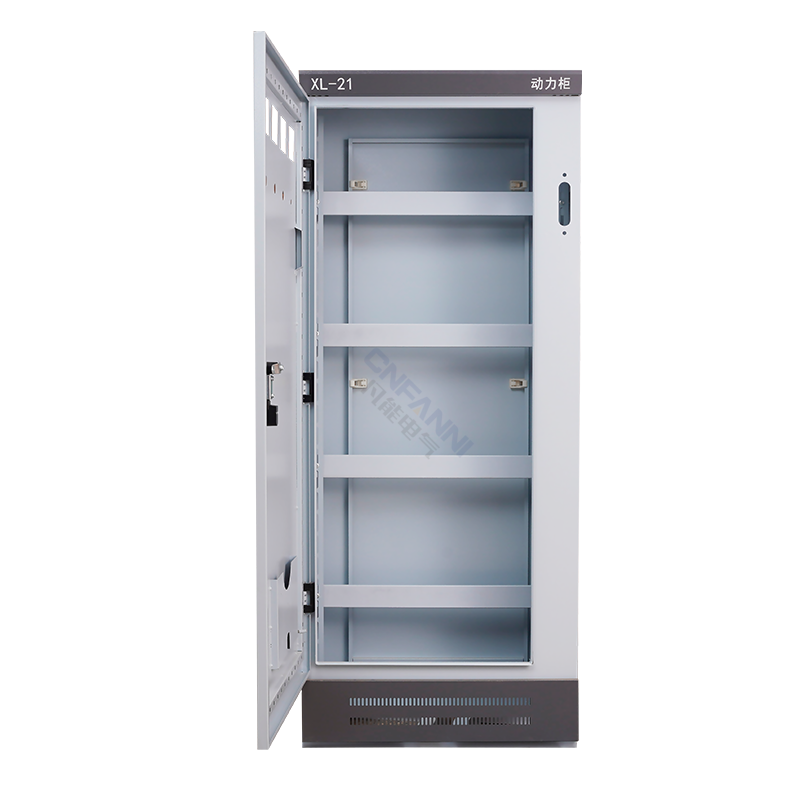

The cabinet body adopts a nine-fold steel welded frame with a stable structure. It is processed by professional three-way welding process. It is not only beautiful in appearance, but also has extremely high load-bearing and anti-deformation capabilities. The built-in mounting plate supports the depth adjustment in units of 25mm, which is suitable for different equipment layout requirements and enhances installation flexibility.

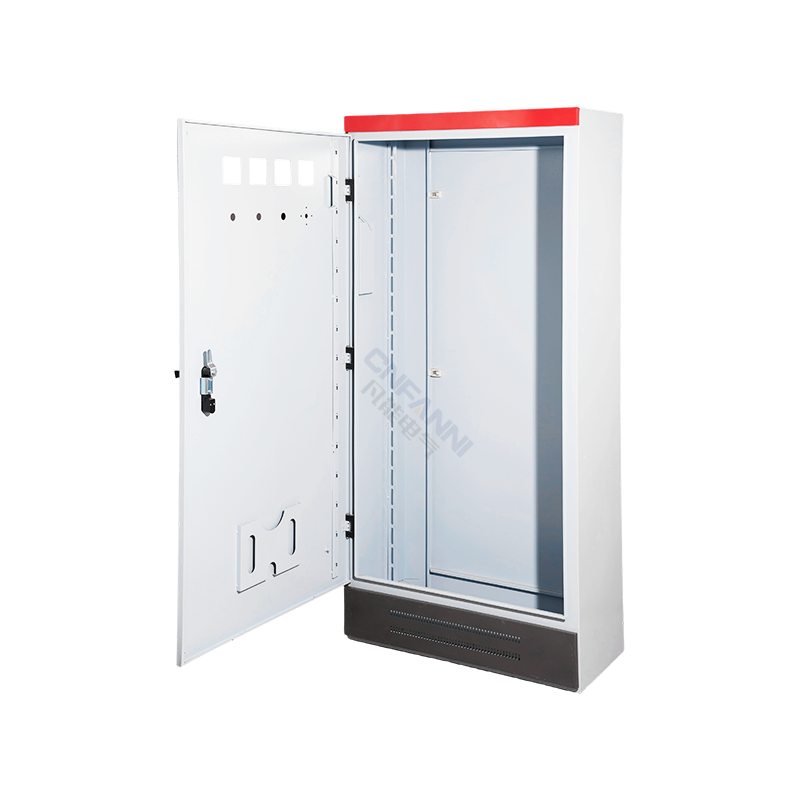

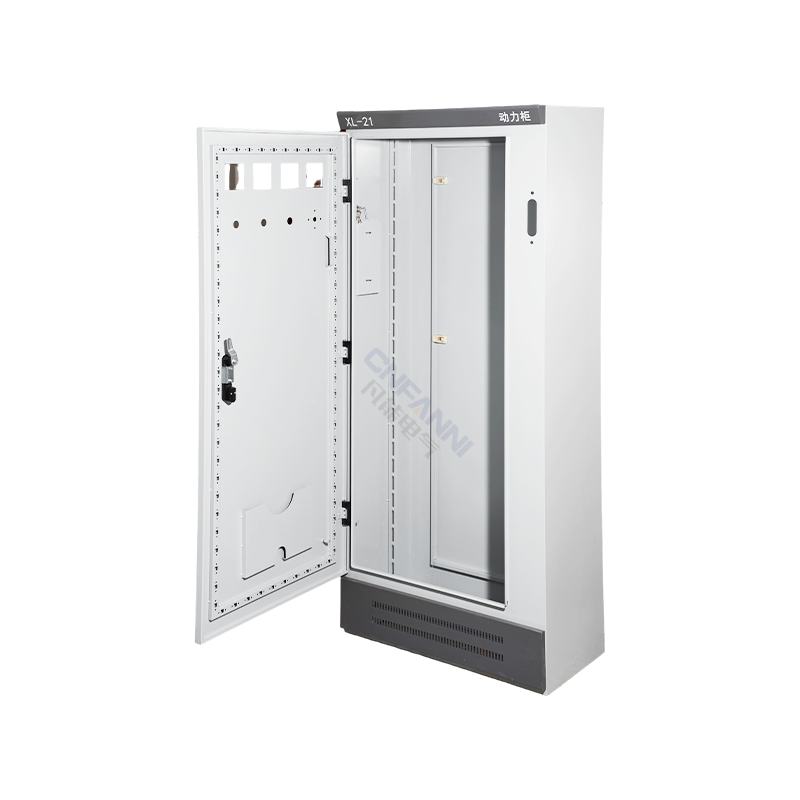

The top, bottom, side panels and back panels of the cabinet body are all fixed with screws, which is convenient for quick assembly and disassembly and improves maintenance efficiency. The hidden hinge design can achieve a large angle of 130°, which is convenient for equipment operation and replacement.
The bottom of the electrical switch box is equipped with three interchangeable covers, which can flexibly realize the cable entry and exit and meet complex wiring requirements. The door panel uses a highly sealed polyurethane foam strip embedded structure to effectively ensure the IP66 level of protection performance. The mounting plate is made of 2.5mm cold-rolled steel plate, which can be painted or galvanized.
Surface treatment includes degreasing, pickling, phosphating and outdoor waterproof plastic powder spraying to ensure that the product is stable and reliable in high humidity and high corrosion environments. The conventional color is RAL7032 or RAL7035, and customers can customize different specifications and colors. It is widely used in outdoor power distribution occasions such as industry, energy, and communications.
